How to – Add a Configuration Template for AT1 Devices
Configuration Templates allow you to indicate the frequency that the system transmits the location of an asset.
Follow the steps below to add a configuration template for AT1 Devices:
-

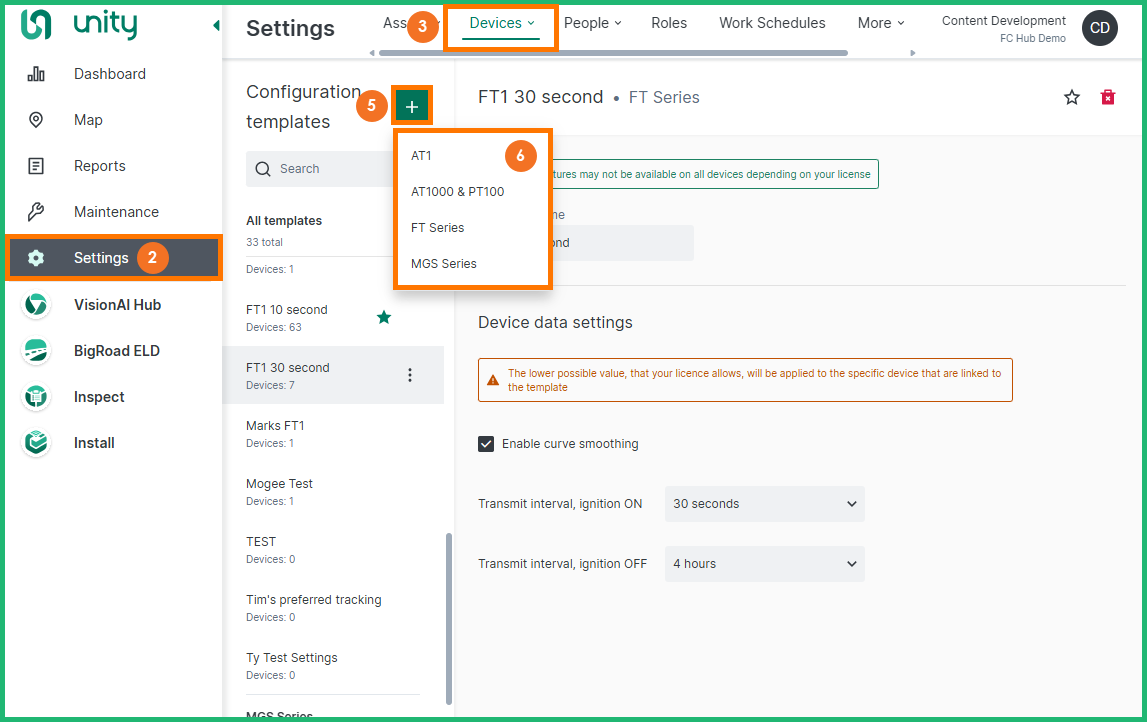

Log in to Unity
-
From the Navigation Panel on the left-hand side, click the Settings module
-
Select the Devices tab from the top
-
From the Devices tab select Configuration Templates
-
Click the + button
-
From the list, select the desired Device Type (AT1)
Note: To work with Devices functionality in Unity web, users must have the manage devices permission enabled for their assigned Role. The system will only show the Device Types that you have purchased.
-
An empty new template form will be displayed on the right-hand side, type in a Template name
-
From the Device data settings section, specify the desired Stationary transmit interval
-
For AT1 Devices, if desired, enable motion detection, and specify the desired Moving transmit interval
-
Click the Save button
