Integrations - Northstar
With the Northstar integration, Unity now supports automatic entity synchronization between the Tattle API and Unity. Fleet managers can access live tracking, trip detection, utilization, and fuel data, while benefiting from seamless, automated asset sync through the Entity Sync Service.
To work with the Integrations functionality in UnityFC, users must have the corresponding permission enabled for their assigned Role.

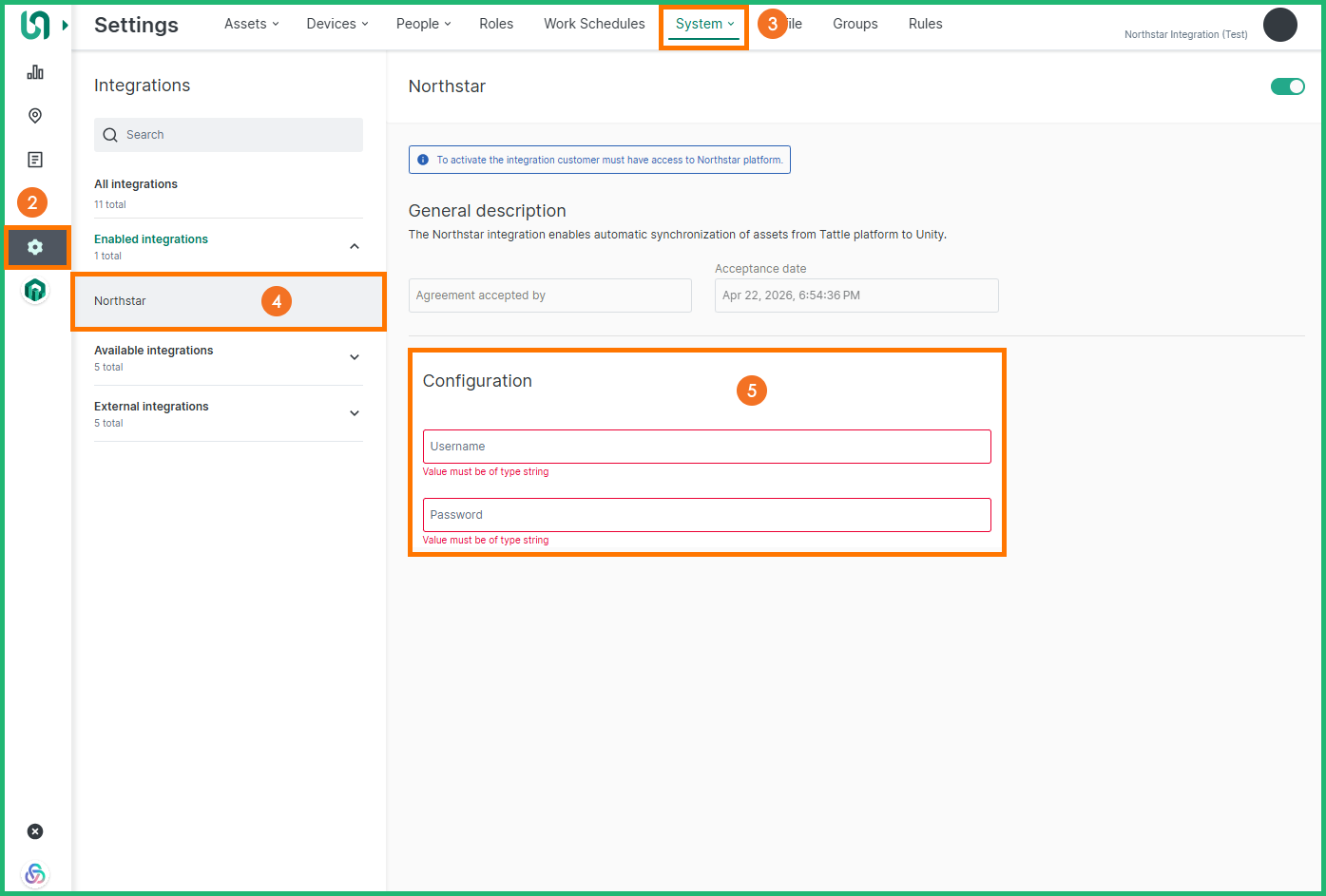

Follow the steps below to access the Integrations page:
-
Log in to Unity
-
From the Navigation Panel on the left-hand side, click the Settings module
-
From the top menu, click System, from the System menu, click Integrations
-
From the Integrations page, click click Enabled Integrations section and select Northstar
-
Type in the Username, Password and Database Name
-
Click the Save button
Note: When a user is accessing the Integration for the first time, it will be available from within the Available Integrations section, and the user must Agree to the Terms and Conditions.
The following outlines the key features and validation criteria for the Northstar integration, highlighting expected functionality across assets, data properties, platform modules, and system connectivity.
| Feature | Descrption |
|---|---|
| Northstar — Mobile Device | - Assets should be able to be created using the Northstar Mobile Device template. - Additional asset properties such as VIN and registration should be available for manual capture on the asset page. - On the Asset Page, under the Devices section, the associated device should be visible. |
| Northstar — Properties | The following properties are expected to be populated from incoming data: GPSState, Latitude, Longitude, Speed, Direction, Arrive Timestamp, Fuel Level |
| Northstar — Modules | - Admin (raw data) - Map - Trips must be generated properly with all data present in admin raw data. - Reports - Data matches what is visible in admin raw data. - A basic set of reports should be tested. - Rules - Basic rules should be created for a representative set of properties: - Trip Start - Trip End - Server-side events - Rules should be tested to confirm they are triggering correctly. |
| Integrations Page — Enable Northstar Connector | Go to the Unity FC Integrations page, select Northstar Systems, enter the required API credentials, and enable the connector—ensuring it activates successfully without errors. |
| Asset Sync — Northstar Asset Properties | - After enabling the Northstar connector, verify that assets are successfully synced into Unity FC with key properties (e.g., name, serial number, tank capacity) and that the total asset count matches the source account. |
