How to - Add a Sensor
The Sensor management page allows users to add new sensors and edit or delete existing sensors.

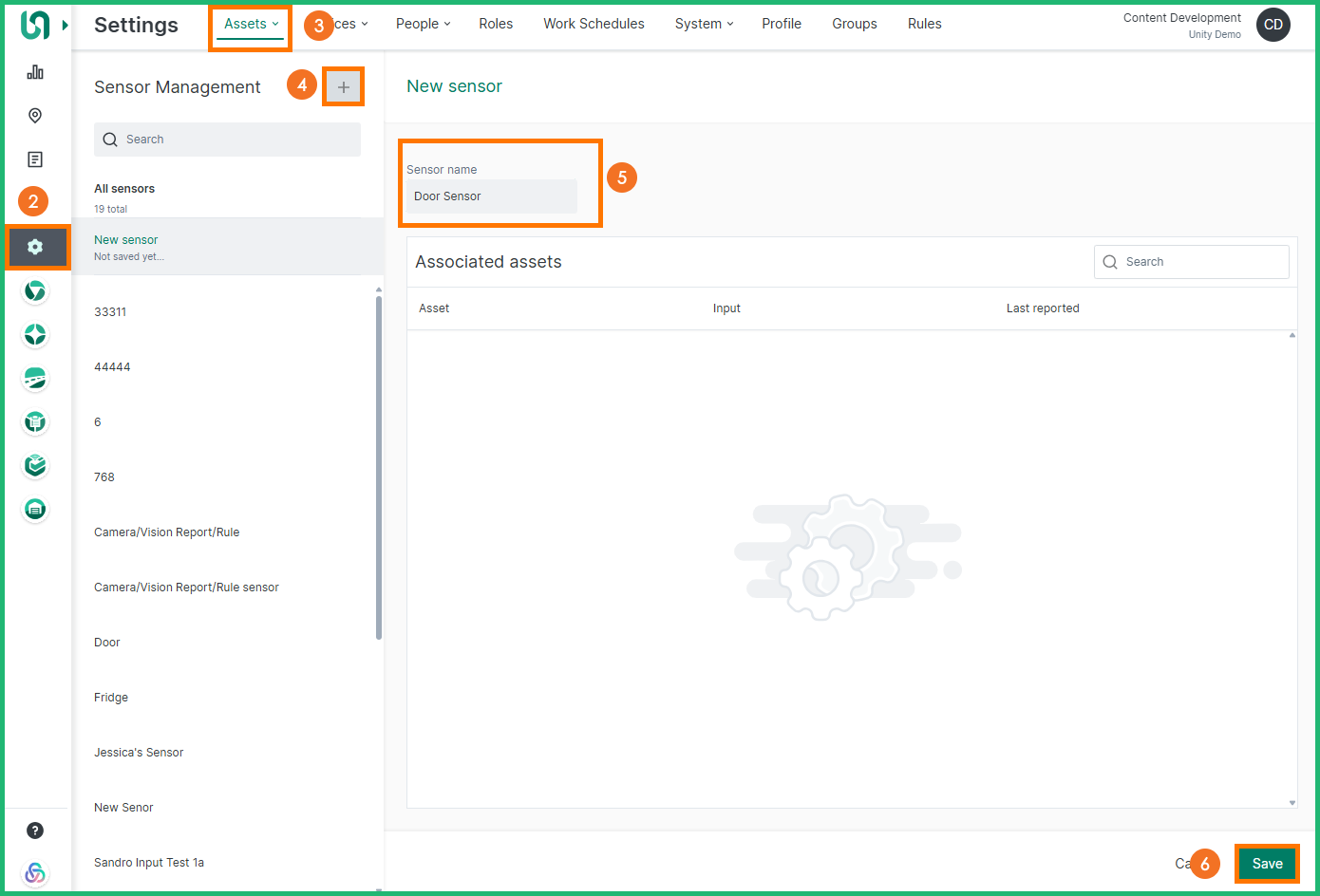

Follow the steps below to add a Sensor:
-
Log in to Unity
-
From the Navigation Panel on the left-hand side, click the Settings module
-
From the top menu, click Assets, from the System menu, click Sensor Management
-
To add a new sensor, click the + button
-
Type in a Sensor name
-
Click the Save button
When sensors are added, users must map them to the correct inputs to start using them.

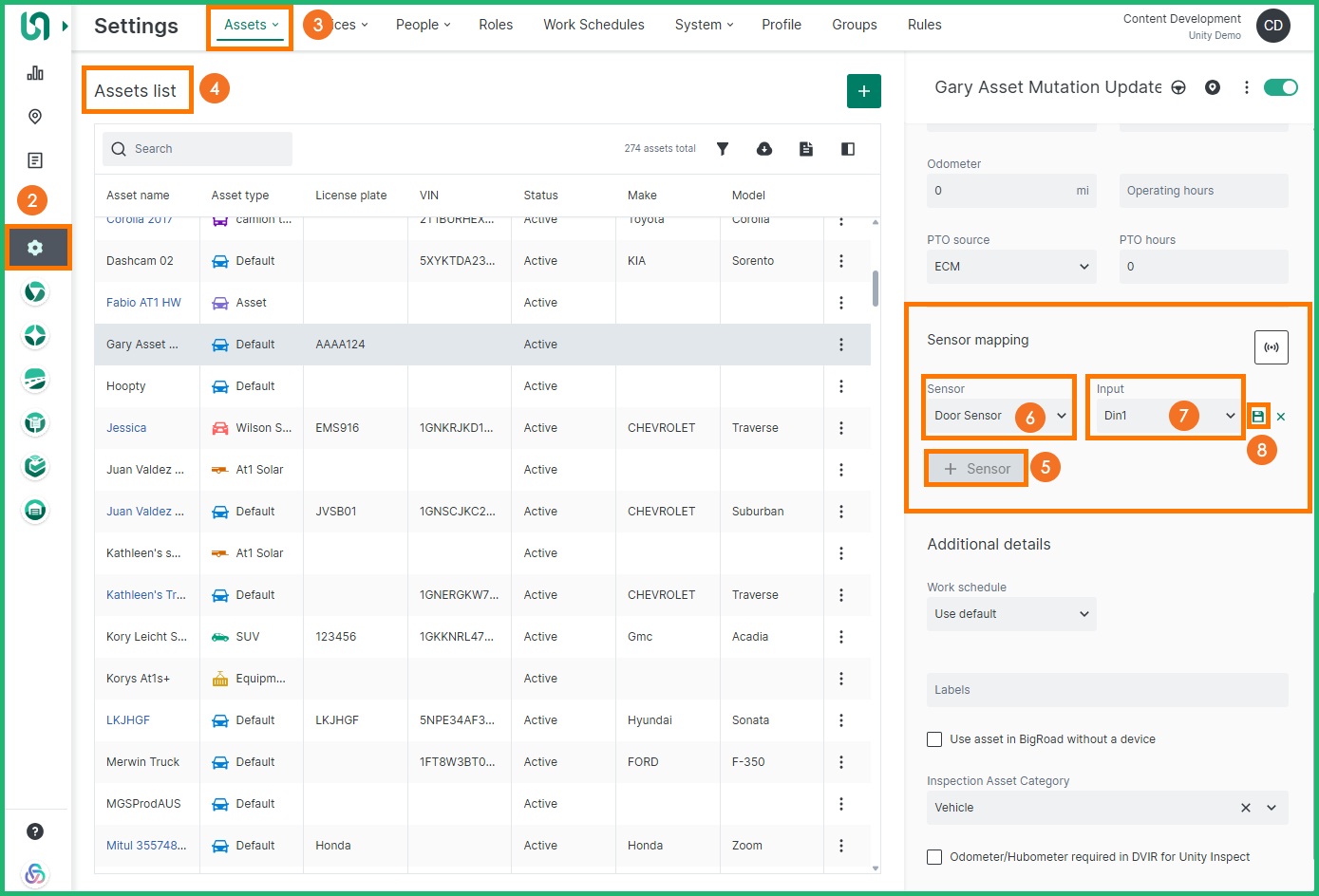

Follow the steps below to add a Sensor and input source mapping to an asset:
-
Log in to Unity
-
From the Navigation Panel on the left-hand side, click the Settings module
-
From the top menu, click Assets, from the System menu, click Assets List
-
From the Assets List, select the desired Asset name
-
From the Sensor mapping section, click the + Sensor button
-
Click within the Sensor field and select the desired Sensor
-
Click within the Input field and select the desired input
-
Click the Save button
Tip: Multiple sensors can be mapped by clicking on the add sensor button.
